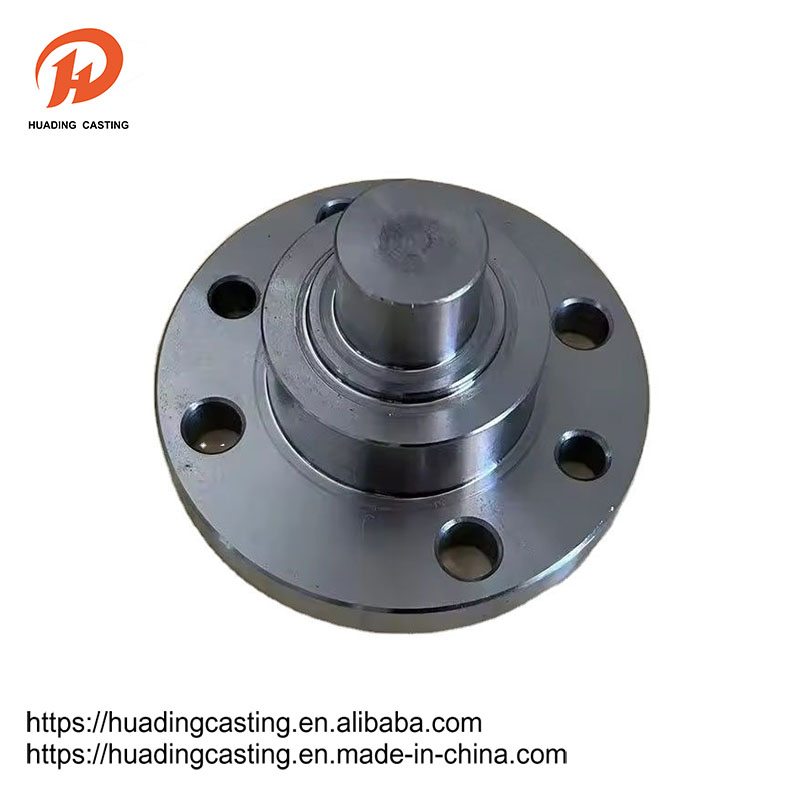

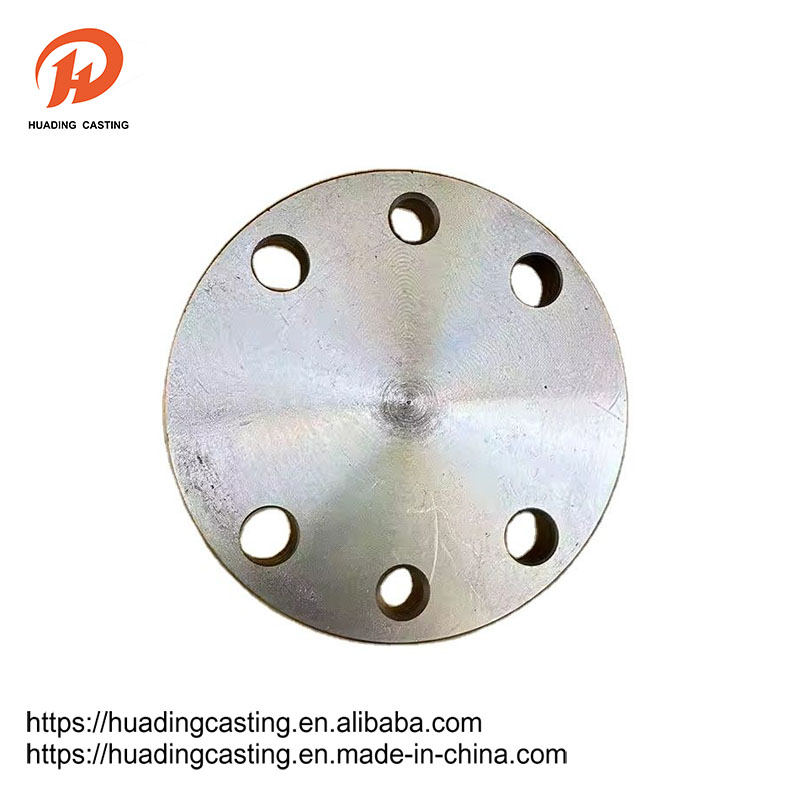

I-flange

I-Flange iyingxenye exhunyiwe phakathi komgodi nomshini, osetshenziselwa ukuxhumana phakathi kwepayipi kuyaphela; Kuyasiza futhi ku-flange ekungeniseni nasekuthekelweni kwamanye amazwe kwemishini yokuxhumeka phakathi kwamadivayisi amabili, njengokunciphisa i-flange. Ukuxhumana kwe-Flange noma i-Flange Joyina kubhekiswa ekuxhumekeni okungaba khona okuxhunywe ngama-flase, ama-gaskets kanye nama-bolts njengeqembu lezinhlaka ezihlanganisiwe zokubopha. Kukhona izimbobo eziseFlange naseBolts zenza ama-flanges amabili axhumeke ngokuqinile. I-Flange ivalwe nge-gasket.

Thumela Uphenyo

Incazelo Yomkhiqizo

Ama-Flanges ahlukaniswe ukuxhumana okuhlanganisiwe (ukuxhumeka okushawa) Ama-Flanges asetshenziswa ngababili, ama-Flanges ocingo angasetshenziselwa amapayipi okucindezela aphansi, kanye nama-flanges we-welded amakhilogremu angaphezu kwamathathu wengcindezi. Beka i-gasket phakathi kwama-flanges amabili bese uwabopha ngama-bolts. Ubukhulu obuhlukile bokucindezela kwe-flange buhlukile, basebenzisa ama-bolts ahlukile. Amaphampu nama-valves, lapho axhumene namapayipi, izingxenye zendawo zale mishini nazo zenziwa zaba bobunjwa obuhle be-flange, ezaziwa nangokuxhunyaniswa kwe-flange. Zonke izingxenye zokuxhuma ezixhumeke ngama-bolts azungeze izindiza ezimbili futhi zivaliwe ngasikhathi sinye zibizwa ngokuthi "ama-flanges", futhi lolu hlobo lungabizwa ngokuthi "izingxenye ezivuthayo". Kepha lokhu kuxhumana kuyingxenye yemishini kuphela, njengokuxhumana kwe-flange nephampu, akukuhle ukubiza "izingxenye ze-flange". Okuncane okufana nama-valves, njll., Kungabizwa ngokuthi "izingxenye ze-flange".

Ipharamitha yomkhiqizo

Dn	Usuku lwePipe	Usayizi wokuxhumeka				C	N	H	Inqwaba
Dn	A	D	K	L	n	C	N	H	Inqwaba
10	17.2	75	50	11	4	12	25	2	3/8
15	21.3	80	55	11	4	12	30	20	1/2
20	26.9	90	65	11	4	14	40	24	3/4
25	33.7	100	75	11	4	14	50	24	1
32	42.4	120	90	14	4	16	60	26	1 1/4
40	48.3	130	100	14	4	16	70	26	1 1/2
50	60.3	140	110	14	4	16	80	28	2
65	76.1	160	130	14	4	16	100	32	2 1/2
80	88.9	190	150	18	4	18	110	34	3
100	114.3	210	170	18	4	18	130	40	4
125	139.7	240	200	18	8	18	160	44	5
150	168.3	265	225	18	8	20	185	44	6
