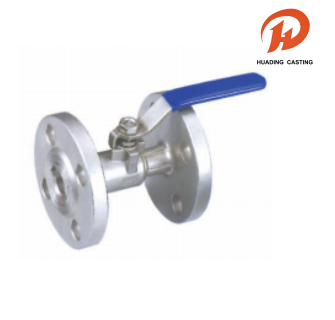

I-One Piece Flange Ball Valves

Amavalvu ethu e-One Piece Flange Ball akhiwe ukuze alethe ukusebenza okuphezulu nokwethembeka kuzo zonke izinhlobo zezinhlelo zokusebenza zezimboni. Aklanywe ngokuguquguquka kwengqondo, lawa mavalvu asekela ukucindezela kokusebenza okungu-1.6, 2.5, 4.0, no-6.4 MPa futhi atholakala ngosayizi abasuka ku-1/2" ukuya ku-10". Afanele ukusetshenziswa nemidiya ehlukahlukene, okuhlanganisa amanzi, igesi, uwoyela, nama-asidi abolayo njenge-nitric ne-acetic acid.I-One Piece Flange Ball Valves inikeza ukuguquguquka okuhle kakhulu kwe-thermal, esebenza ngokuphumelelayo emazingeni okushisa angaphansi kuka-180 ° C anezimpawu ze-PTFE noma kufika ku-300 ° C anezimpawu ze-PPL.

Thumela Uphenyo

Incazelo Yomkhiqizo

Igama:I-One Piece Flange Ball Valves

Indaba: Ithebula Elilandelayo

I-MOQ: 100 ama-pcs

Iphakheji: Ukupakishwa kwangaphakathi kwesikhwama sebhamuza esijiyile kanye nokupakishwa kwangaphandle kwekhathoni, Noma izinto zokuhamba zephalethi ezifanele ulwandle

Ukuthunyelwa: DHL, UPS, FedEx, LCL ngolwandle njll.

Ukubekezelela: Ukunemba kwe-CNC machining, ukubekezelelana ± 0.01mm

Ukuhlolwa:Ukuhlolwa okugcwele kwe-CMM yaseJalimane, i-zero defect

I-OEM & ODM: I-OEM & ODM yamukelwe, ukwenziwa kwesampula okusheshayo

Isikhathi:Ukulawulwa kwekhwalithi okuqinile, ukulethwa ngesikhathi

Isevisi: Ukukhetha okubanzi kwezingxenye zangokwezifiso

I-I-One Piece Flange Ball Valves

Ukuphepha nokuthobelana kubaluleke kakhulu ekwakhiweni kwalawa maValuvu ebhola e-One Piece Flange. Zithobela izindinganiso zamazwe ngamazwe eziqinile, ezihlanganisa ama-ANSI B16.5 flange kanye nobukhulu bobuso nobuso be-ANSI B16.10. Ngaphezu kwalokho, i-fire-safe (API 607) kanye namadivayisi aphikisana ne-static ayatholakala uma ecelwa ukuze kuqinisekiswe ukuphepha kokusebenza ezindaweni eziyingozi. Yonke iyunithi ihlolwa ngokuqinile ngokuya ngamazinga we-ANSI B16.34 kanye ne-API 598. Kungakhathaliseki ukuthi okokusebenza okuvamile noma ukucutshungulwa kwamakhemikhali okukhethekile, Amavalvu Ebhola Lethu Le-One Piece Flange ahlinzeka ngesixazululo esiqinile, esithobelayo, nesekhwalithi ephezulu sezidingo zakho zokulawula uketshezi.

Amavalvu ebhola e-Flange Izinhlamvu Zobuchwepheshe kanye Nomdwebo Ojwayelekile

I-NPS	1.6MPa, 2.5MPa, 4.0MPa, 6.4MPa
I-NPS	d	L	D	K	D1	C	f	H	N-Φ	W
1/2	12	90	95	65	46	14	2	60	4-14	110
3/4	15	105	105	75	56	14	2	65	4-14	120
1	20	110	115	85	65	15	2	75	4-14	150
1 1/4	25	125	135	100	76	16	3	83	4-18	160
1 1/2	32	136	145	110	85	18	3	90	4-18	160
2	38	155	160	125	100	18	3	100	4-18	180
2 1/2	50	170	180	145	118	20	3	110	4-18	200
3	65	200	195	160	132	20	3	130	8-18	250
4	80	230	215	180	150	22	3	150	8-18	270
5	76	254	255	216	186	24	3	185	8-22	300
6	102	267	279	241.5	216	26	3	209	8-22	320
8	152	292	345	298.5	270	29	3	250	8-22	350
10	203	330	406	362	324	31	3	345	12-26	400

I-I-Ball Valve Material List

INGXENYE IGAMA	IZINTO
UMZIMBA	CF8M/WCB
ISIHLALO	I-PTFE
I-CAP	CF8M/WCB
SEAL GASKET	I-PTFE/GRAPHITE
IBHOLA	I-SS316
STEM	I-SS316
I-STEM SEAL	I-PTFE
UKUPAKA	I-PTFE/GRAPHITE
PAKISHA INDLALA	I-SS316
PAKISHA INDLALA	CF8M/WCB
MISA IPHINIKHODI	I-SS304
I-GLAND BOLT	I-SS304
INDANDATHO	65MN
ISIBAMBA	I-KT33-8
SETHA IBHUTI	I-SS304
