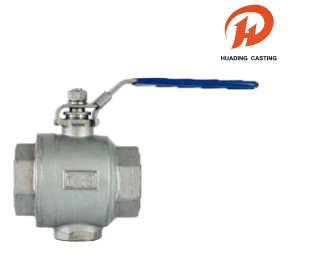

Amavaluvu Ebhola Okuxhumana Kweziqephu Ezimbili

Lawa maValuvu Amabili Okuxhunywa Kwentambo Yezintambo Ezimbili afaka umzimba oqinile wokutshala imali kanye nesiqu sobufakazi obuphuma ngaphandle, okuqinisekisa ukuphepha nokuqina. Idizayinelwe ukwenza izinto ezihlukahlukene, ama-valve athobelana namazinga amaningi entambo (NPT, BSPT, DIN 2999, ISO 228) futhi asekela ukukhwezwa okuqondile kwe-ISO 5211 kwama-actuator. Ngengcindezi yokusebenza engu-1000 PSI kanye nokubambelela kumazinga okuhlola aqinile afana ne-API 598, lawa maValuvu Amabili Ezingxenye Ezimbili Zokuxhuma I-Tread Thread Ball akhelwe izinhlelo zokusebenza ezisebenza kahle kakhulu.

Thumela Uphenyo

Incazelo Yomkhiqizo

Igama:Izingcezu Ezimbili Zokuxhuma Ibhola Ngaphakathi Amavavu Ebhola

Indaba: Ithebula Elilandelayo

I-MOQ: 100 ama-pcs

Iphakheji: Ukupakishwa kwangaphakathi kwesikhwama sebhamuza esijiyile kanye nokupakishwa kwangaphandle kwekhathoni, Noma izinto zokuhamba zephalethi ezifanele ulwandle

Ukuthunyelwa: DHL, UPS, FedEx, LCL ngolwandle njll.

Ukubekezelela: Ukunemba kwe-CNC machining, ukubekezelelana ± 0.01mm

Ukuhlolwa:Ukuhlolwa okugcwele kwe-CMM yaseJalimane, i-zero defect

I-OEM & ODM: I-OEM & ODM yamukelwe, ukwenziwa kwesampula okusheshayo

Isikhathi:Ukulawulwa kwekhwalithi okuqinile, ukulethwa ngesikhathi

Isevisi: Ukukhetha okubanzi kwezingxenye zangokwezifiso

Amavaluvu Ebhola Okuxhumana Kweziqephu Ezimbili

Lawa maVavefu we-Two-Piece Inner Thread Connection Ball athobela izindinganiso zentambo yamapayipi okuhlanganisa i-NPT, BSPT, DIN 2999, ne-ISO 228, futhi afaka idizayini yokukhweza eqondile ye-ISO 5211 yama-actuator kanye nedivayisi yokukhiya. Ilinganiselwe ngengcindezi yokusebenza engu-1000 PSI (PN63) W.O.G, Amavalvu Amabili-Piece Inner Thread Connection Ball avivinywa ngokuqinile ngokuya nge-API 598, GB/T 13927, kanye namazinga e-ISO 5208 ukuze kuqinisekiswe ukusebenza okuthembekile kuzinhlelo zokusebenza ezifunayo.

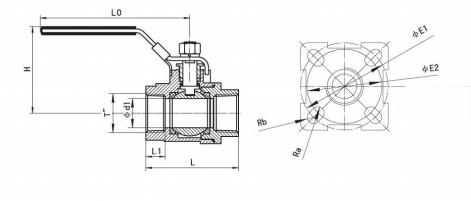

Amavaluzi Ebhola Izinhlamvu Zobuchwepheshe Nomdwebo Ojwayelekile

NOMINAL	I-PIPE	DIMENSION
I-DIA. (mm)	UCHWEPHESHE	d1	L	L1	H	L0	Ra	Rb	E1	E2
8	1/4	9.2	46.8	10	47.8	80	R3	R3	Φ42	Φ36
10	3/8	12.5	52	12	52	80	R3	R3	Φ42	Φ36
15	1/2	15	59	13.5	56.5	100	R3	R3	Φ42	Φ36
20	3/4	20	65	14.5	58.5	100	R3	R3	Φ42	Φ36
25	1	25	76	16.5	74	148	R3	R3.5	Φ50	Φ42
32	1 1/4	32	90	19	79	148	R3	R3.5	Φ50	Φ42
40	1 1/2	38	101.5	19	92	190	R3.5	R4.5	Φ70	Φ50
50	2	50	120.5	22	103	190	R3.5	R4.5	Φ70	Φ50
65	2 1/2	65	157	28	118	280	R4.5	R5.5	Φ102	Φ70
80	3	80	176	32	118	280	R4.5	R5.5	Φ102	Φ70
100	4	100	212	32	144	280	R5.75	R6.75	Φ125	Φ102

I-I-Ball Valve Material List

INGXENYE IGAMA	IZINTO
UMZIMBA	I-WCB CF8 CF8M
I-CAP	I-WCB CF8 CF8M
IBHOLA	I-SS304 SS304 SS316
ISIHLALO	I-PTFE
STEM	I-SS304 SS304 SS316
IGLAND	I-SS304
UKUPAKA	I-PTFE
I-GASKET	I-PTFE
IWASHA	I-PTFE
I-NUT	I-SS304
IWASHA INHLOKO	I-SS304
I-LOCKER	I-SS304
ISIBAMBA	I-SS304
ISEMBOZO	I-PLASTIC
