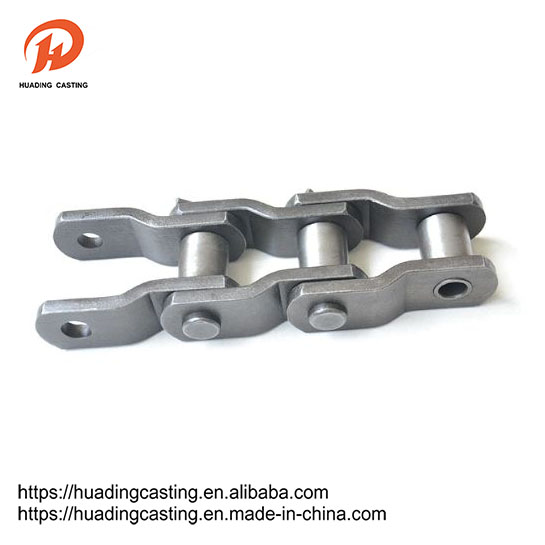

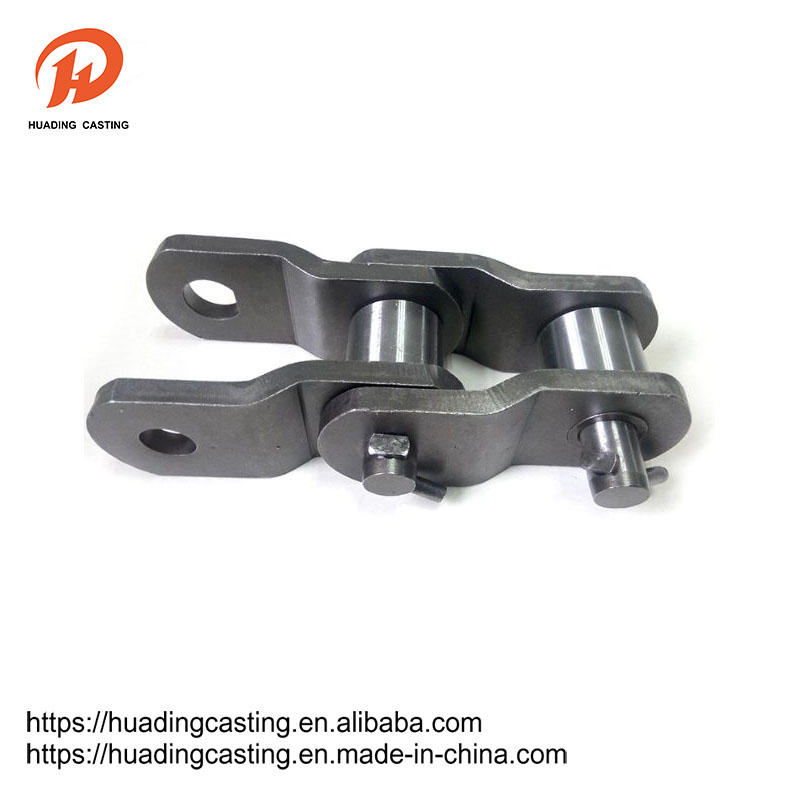

Uhlobo lwensimbi olunezinwele olunamachashazi amaketanga amaketanga

Amaketanga wensimbi efakwe i-welded crankwed chanked Link Milling amaketanga enzelwa ukudlulisela umthelela oqinile, ukugqoka kanye nokuklebhula okuqukethwe, kungasetshenziswa emvelweni yothuli, ikakhulukazi ukusakazeka okusanhlamvu, ukuvela kwezinkuni ngobuningi, ukuhambisa izinkuni nokunye. Ingamelana nokugqoka okuhlala njalo kanye nomthelela omkhulu.

Thumela Uphenyo

Incazelo Yomkhiqizo

Imininingwane Yomkhiqizo: Izinsimbi zensimbi 'zohlobo lwensimbi oluhlanganisiwe lwamaketanga amaketanga

Ukwakheka Kwezinto Ezibonakalayo:

Yakhelwe kusuka ku-alloy ye-alloy ye-premium-grade, e-huading metal 'i-welded steel cranked chanked chanked chanked amaketanga anikeza amandla aphezulu nokuqina.

Ipuleti elibunjiweyo:

Ukusebenzisa ubuchwepheshe bokunemba, ama-boores ngaphakathi kwamapuleti ashaywa ngokucophelela futhi acindezelwe ukuqinisekisa ukubekezelelwa okuqinile nokulingana kahle phakathi kwezinto.

Ingxenye Imishini:

Izikhonkwane, izihlahla, kanye nama-roller abhekene nokunemba kwemishini ngemishini ethuthukisiwe yokuzenzakalelayo nokugaya, okuholela ekunikezelweni okunembile okunengqondo kanye nokuqedwa kwendawo ebushelelezi.

Inqubo yokwelashwa kokushisa:

Ngemuva kwemishini, izakhi zifakwa ngaphansi kokwelashwa okushisa:

· Carlibuzization yokwanda okungaphezulu kobulukhuni

· Ikhabhoni ne-nitrogen ivimbele esithandweni sebhande le-mesh ethempeli lokumelana nokugqwala

· Ubuso buqhuma ukutholakala kokucushwa okuthuthukile

Inqubo Yomhlangano:

Izimbobo zangaphakathi zibekwe ngokuqondile ukufeza ukunemba komhlangano okungekho emthethweni

· Amasu wokucindezela wengcindezelo aqashwe ukuze axhumane ngokuphepha izixhumanisi, ukuthuthukisa amandla e-chain lonke kanye nokwethenjwa

Ukusebenza okuphelele:

Inhlanganisela yezinto ezisezingeni eliphakeme, izinqubo eziqondile zokukhiqiza, nokulawulwa kwekhwalithi okuqinile kuqinisekisa ukuthi amaketanga wensimbi e-welding terwork cranks arwition cranks arning ukuletha ukusebenza okuhlukile, ukuqina, kanye nokwethenjwa kwezicelo ezahlukahlukene zezimboni nezemishini.

Ipharamitha yomkhiqizo

I-Ansi Chain Cha.	Uthango	Ububanzi Bush	I-wandrch yangaphakathi yokuxhumana nge-sprocket	Ububanzi be-PIN	Ubude bephini		Ukujula kwepuleti	Ipuleti-ness	Amandla okugcina	Isilinganiso samandla ashubile	Isisindo ngemitha ngayinye
	P	d1 max	B1 min	d2 max	L max	Lc max	I-H2 Max	T	Q min	Isikhomeli	q
	m	m	m	m	m	m	m	m	KN / LB	ubaba	Kg / m
	66.27	22.9	28.40	12.78	73.0	79.3	28.4	6.4	93.4 / 1227 106 .8 / 24273	102.7 117.5	6.20
	78.10	31.5	31.8	14.35	80.0	86	31.8	6.4	100.1 / 22750 131.2 / 29818	110.1 144.3	7.98
	152.4	37.1	41.20	19.13	103	111	38.1	9.7	169/38409 224.6 / 51045	185.9 247.0	10.56
	152.4	32	46.7	19.13	107.7	115.5	38.1	9.7	169.0 / 38409 224.6 / 51045	185.9 247.0	10.40
	120.9	37.1	57.2	19.13	116.8	124.5	38.1	9.7	169.0 / 38409 224.6 / 51045	185.9 247.0	12.72
	101.6	37.1	41.2	19.13	103	110	38.1	9.7	169.0 / 38409 224.6 / 51045	185.9 247.0	12.38
	103.2	41.7	41.2	22.3	131.6	133	50.8	12.7	275.8 / 62682 355.9 / 80886	303.3 391.4	19.68
	153.67	44.7	76.2	25.48	151.0	162	50.8	12.7	275.8 / 62682 378.1 / 85932	303.3 415.9	20.00
